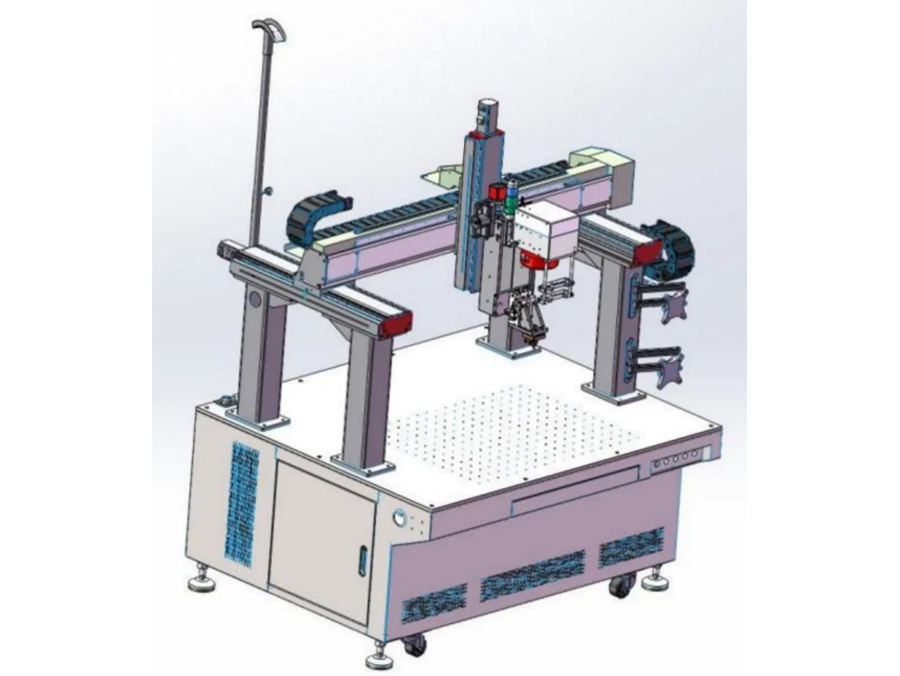

Battery Blue Film Wrapping Equipment

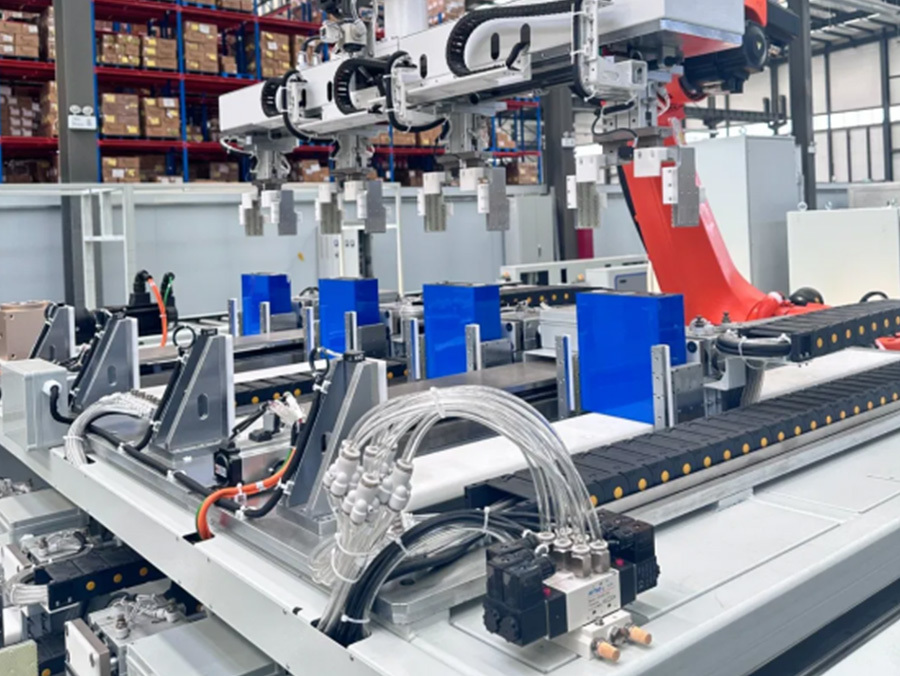

Blue protective insulation film is automatically wrapped around the battery cell to enhance electrical insulation and surface protection.
  • Product description
    • Commodity name: Battery Blue Film Wrapping Equipment
    • Commodity ID: 电池包蓝膜设备0

    Blue protective insulation film is automatically wrapped around the battery cell to enhance electrical insulation and surface protection.

    1. Equipment Overview

    • Equipment Name: Battery Blue Film Wrapping Equipment
    • Model: HY-BFW3030
    • Application: Blue protective insulation film is automatically wrapped around the battery cell to enhance electrical insulation and surface protection.

    2. Mechanical Specifications

    • Equipment Dimensions:
      • Length: 2200 mm
      • Width: 1600 mm
      • Height: 2000 mm
    • Weight: 1200 kg ± 5%
    • Frame Material: High-strength steel with anti-corrosion treatment.
    • Worktable Material: Anodized aluminum alloy with anti-static properties.
    • Motion System: Servo-driven X-Y-Z axes with linear guide rails for precise positioning.

    3. Wrapping Specifications

    • Film Material: Blue PET/PP insulation film.
    • Film Thickness: 0.02–0.08 mm.
    • Cell Dimensions:
      • Width 50–200 mm
      • Height: 50-400 mm
      • Thickness: 20-80 mm
    • Wrapping Speed: Up to 2 cells per minute (process-dependent).
    • Film Overlap Control: Adjustable overlap range of 1–5 mm.
    • Wrapping Tension: Automatically adjustable to ensure uniform application.

    4. Film Feeding System

    • Film Roll Specifications:
      • Maximum Roll Diameter: 300 mm
      • Core Diameter: 76 mm
      • Film Width: 60-450 mm (adjustable).
    • Feeding Accuracy: ±0.1 mm.
    • Automatic Film Loading: Supports quick replacement with tension control.

    5. Control and Interface

    • Control System: PLC-based control system with integrated HMI.
    • Interface:
      • 10-inch capacitive touchscreen with user-friendly GUI.
      • Multi-language support (English, Chinese, others).
    • Programmable Parameters:
      • Wrapping tension, overlap, and speed.
      • Film heating and sealing temperature.
      • Recipe storage for different battery models.
    • Data Logging:
      • Internal Capacity: 1 TB SSD for process history.
      • Export Formats: CSV, PDF via USB, Ethernet, or Wi-Fi.

    6. Electrical Specifications

    • Power Supply: AC 220V ± 10%, 50/60 Hz.
    • Maximum Power Consumption: 6 kW.
    • Control Voltage: 24V DC for auxiliary systems.

    7. Safety Features

    • Emergency Stop: Dual emergency stop buttons on front and rear panels.
    • Overload Protection: Real-time monitoring of motor load and film tension.
    • Protective Barriers: Transparent enclosure with interlocks to ensure safe operation.
    • Defect Detection Alerts: Audible and visual alarms for film misalignment or insufficient sealing.
    • Anti-Jam System: Automatic detection and correction of film jams.

    8. Environment & Installation

    • Operating Environment:
      • Temperature: 15–30°C
      • Humidity: ≤65% RH (non-condensing).
    • Noise Level: ≤70 dB during operation.
    • Installation Requirements:
      • Flat, vibration-free surface.
      • Clearance: Minimum 800 mm on all sides.

    9. Optional Configurations

    • Dual Wrapping Heads: For higher throughput by processing two cells simultaneously.
    • Automated Loading/Unloading System: Conveyor or robotic arm integration for seamless operation.
    • IoT Connectivity: Remote monitoring and diagnostics via cloud platforms.
    • Advanced Inspection System: High-resolution 3D cameras for surface defect detection.

    10. Maintenance and Warranty

    • Maintenance Schedule:
      • Weekly: Clean rollers, check film feeding components, and inspect heating elements.
      • Monthly: Verify alignment and recalibrate wrapping parameters.
      • Quarterly: Perform a full diagnostic of the control system and motion components.
    • Warranty Period:
      • Standard: 12 months.
      • Extended: Up to 36 months available upon request.
