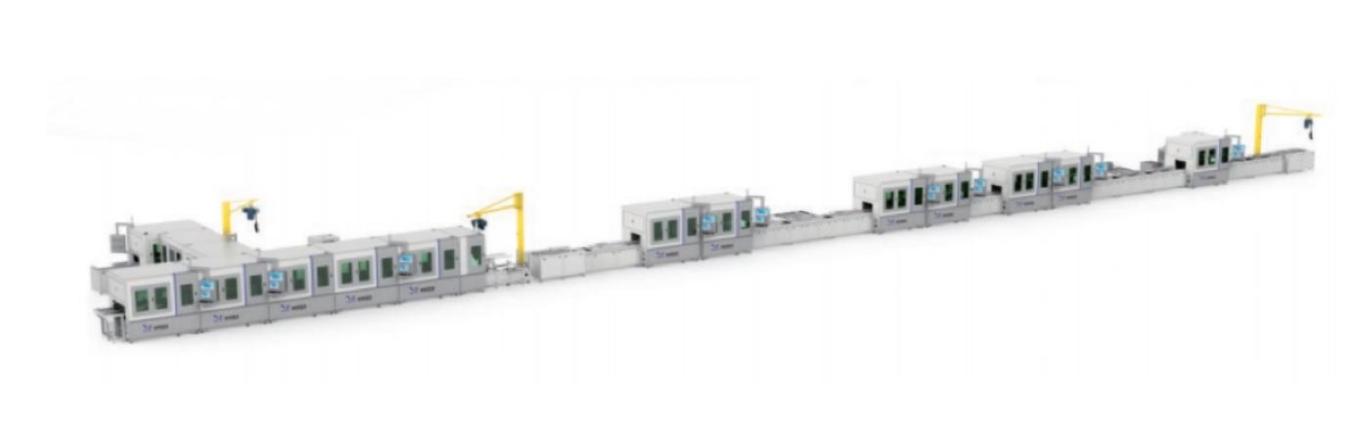

Advanced Pouch Cell Battery Module Assembly Line
Release time:
2025-06-16
As the demand for lightweight, high-energy, and safe energy storage solutions grows, pouch cell battery modules are gaining significant attention across the electric vehicle, energy storage, and consumer electronics industries.
As the demand for lightweight, high-energy, and safe energy storage solutions grows, pouch cell battery modules are gaining significant attention across the electric vehicle, energy storage, and consumer electronics industries. Unlike cylindrical or prismatic cells, pouch cells offer superior energy density and design flexibility, but also pose unique challenges in assembly due to their soft structure and stringent sealing requirements.
This article explores how next-generation pouch cell module production lines, powered by technologies like laser welding, AI inspection, and modular automation, are shaping the future of energy manufacturing — with HuiyaoLaser playing a key role in precision joining and intelligent integration.
1. Why Pouch Cells?
Pouch cells are thin, lightweight, and highly customizable in size and shape. They offer:
● Higher energy density compared to cylindrical cells
● Lower weight due to aluminum-laminated packaging
● Improved thermal performance, ideal for compact modules
However, their flexible packaging requires non-destructive handling, high-precision sealing, and stable structure reinforcement, all of which demand advanced production solutions.
2. Full-Process Integration for Pouch Module Assembly
● Modern pouch cell module production lines are designed to handle the entire process flow, including:
⑴ Cell Sorting & Stacking
Automated sorting ensures consistency in cell quality. High-speed stacking aligns cells with tight tolerances to prepare them for tab welding and encapsulation.
⑵ Laser Tab Welding
This is a core process where HuiyaoLaser’s precision laser welding systems shine. Their high-accuracy, low-thermal-impact welding enables:
● Secure bonding of aluminum or copper tabs to busbars
● Precise control of energy input to avoid pouch damage
● Real-time quality monitoring through integrated vision systems
⑶ Insulation, Frame, and Structural Assembly
Modules are reinforced using plastic or aluminum frames and insulation layers to protect pouch cells while allowing heat dissipation. Automated gluing, taping, and pressing equipment ensures mechanical strength without introducing stress.
⑷ Module Sealing and Enclosure
The assembled cells are placed into module housings, sealed with adhesives or laser-welded covers, ensuring:
● Moisture and gas protection
● Enhanced shock and vibration resistance
● Intelligent Inspection
AI vision systems check for weld quality, tab alignment, surface defects, and frame fitment. HuiyaoLaser’s integrated 3D visual inspection modules provide sub-millimeter accuracy and real-time feedback, reducing defects and rework.
⑸ Functional Testing & Data Traceability
Electrical performance tests (voltage, resistance, insulation) are conducted automatically. All process data is logged via MES to enable end-to-end quality traceability.
3. Key Advantages of the Modern Pouch Module Line
● Flexible Configuration: Supports multi-size pouch cells with quick changeovers
● High Precision: Laser welding positioning accuracy up to ±0.05mm
● Defect Detection: AI + vision systems identify micro-cracks, misalignments, and thermal damage
● Efficiency: Integrated automation reduces labor and improves takt time
● Safety: Full-process monitoring and closed-loop control reduce risk of leakage or fire
● Green Manufacturing: Energy-efficient systems and waste minimization support sustainability goals
4. Application Scenarios
● Electric Vehicles (EVs): Pouch modules enable thin, flexible battery packs with high energy per volume
● Energy Storage Systems (ESS): Pouch cell packs offer high performance and low cost for residential and commercial storage
● Consumer Electronics: Ideal for compact, fast-charging devices like laptops, drones, and power tools
5. HuiyaoLaser: Empowering Precision & Intelligence
As a specialist in laser welding and intelligent manufacturing systems, HuiyaoLaser (Luoyang) Technology Co., Ltd. provides core solutions for pouch module production, including:
● High-speed tab welding platforms
● Visual-guided precision welding systems
● Compact laser welding machines for flexible automation cells
By integrating AI, machine vision, and digital control, HuiyaoLaser helps battery manufacturers achieve higher yield, improved safety, and scalable smart production.
Conclusion
The pouch battery module production line is a cornerstone of modern energy manufacturing, enabling the delivery of lightweight, safe, and high-performance batteries across multiple industries.
With innovations in laser processing and AI-driven inspection, HuiyaoLaser is driving the intelligent transformation of pouch cell assembly lines, making battery production faster, smarter, and more sustainable.
About HuiyaoLaser
HuiyaoLaser (Luoyang) Technology Co., Ltd. is a trusted partner in intelligent laser processing solutions, specializing in laser welding systems for battery module and PACK lines. With a strong focus on automation, precision control, and AI-driven visual inspection, HuiyaoLaser supports global manufacturers in achieving higher quality, lower cost, and safer production.
Whether enabling ultra-high-speed lines or facilitating solid-state battery innovation, HuiyaoLaser is committed to empowering the future of energy through laser intelligence.
